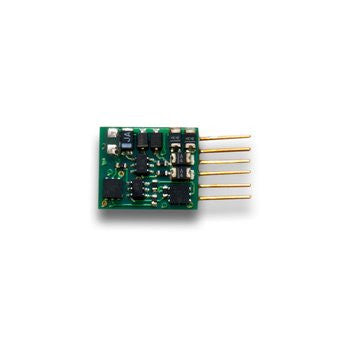

Product Image Digitrax DZ126IN 1 Amp Z / N / HO Scale Decoder

Digitrax DZ126IN 1 Amp Z / N / HO Scale Decoder

$35.00

Pin It

Fits Many Z, N and HO Locomotives with 6 Pin NEM 651 type plug

  • Size: .36” x .42” x .13”
    9.05mm x 10.61mm x 2.67mm
  • N Scale
  • 1.0 Amp/1.5 Amps Peak
  • 2 FX3 Functions, 0.5 Amp with 6 Pin NEM 651 type plug
  • FX3 Function outputs for prototypical lighting effects and on/off control:
    Constant Brightness Lighting with directional or independent control.
    Optimized selectable LED or incandescent lamp operation
    Realistic Effects like Ditch lights, Mars lights, strobes, and many more
    Configurable Pulse Function available on all function outputs.
    FX3 & Standard Function Qualifiers operate functions based on direction,
    F0 on or off, direction and F0, and whether loco is moving.
    Function Mapping for custom function setup.
    Master Light Switch turns off all lights & functions with one keystroke.
    Advanced Consist Function Controls.
  • Digitrax LocoMotion® System-Your locomotives look like the real thing.
    The Digitrax LocoMotion System makes them run like the real thing, too!
    Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
    Torque Compensation.
    128 Speed Step operation (14 or 28 steps can also be used).
    Momentum with acceleration and deceleration.
    Normal Direction of Travel is user selectable.
    Switching Speed feature for easier and faster access to yard speeds.
    3 Step Speed Tables set start, mid and max voltage for custom control.
    28 Step Speed Tables with 256 level resolution for precise control.
  • Program CVs using any Digitrax Compatible Control system without havingto buy any extra equipment.
  • 2 Digit and 4 Digit Addressing.
  • Basic, Advanced & UniVersal Consisting.
  • SuperSonic motor drive for silent operation.
  • Direct mode programming.
  • Decoder Reset CV with or without speed table reset.
  • Transponder Equipped ready for transponding on your Layout.
  • Motor Isolation Protection helps prevent damage to your decoder.
  • Automatic Analog Mode Conversion when running on DC layout.
  • Decoder Lock for individual programming of multiple decoders in one loco.
  • Digitrax “No Worries” Warranty.

Specifications:

 Size 0.36” x 0.42” x 0.13” (9.05mm x 10.61mm x 2.67mm)
Installation

6 Pin NEM 651 Plug:

The plug is integrated into the decoder

This small 6 pin interface is used mostly for N scale locomotives due to their small size.

The locomotive side is a 1x6 female socket with 0.05" pitch.
The pin out is as follows:

Pin 1 Motor Right

Pin 2 Motor Left

Pin 3 Right Rail

Pin 4 Left Rail

Pin 5 Front Headlight (F0F)

Pin 6 Rear Headlight (F0R)
Function Outputs

2 function decoders support F0 Forward and F0 Reverse.  This allows for reversing headlights or for two separate functions.

How functions are numbered:

F0 (FWD) White

F0 (REV) Yellow

The Blue wire is Lamp Common to allow for continuous lamp operation.

F1 Green

F2 Violet

F3 Brown

F4 White with Yellow Stripe

F5 White with Green Stripe

F6 White with Blue Stripe

F7

F8

F9

and so one are each counted as one function.  This is an industry wide convention.
Function Type

Digitrax Real FX3

  • Turn functions on and off.
  • Head lights and tail lights are automatically reversing unless you make them independent.
  • All function outputs have FX generators for prototypical lighting effects and have qualifiers for FX effects and qualifiers for standard on/off functions.
  • All Digitrax Series 3 decoders have FX3 type functions.
  • FX3 decoders offer full function mapping so you can choose which function (F0-F12) controls each function lead.
  • FX3 decoders offer master light switch capability.
  • FX3 decoders offer qualifiers for FX function operation qualified by one of the following:  the loco's direction of travel, whether F0 is on or off, loco direction and F0, or whether the loco is moving or not. These qualifiers are also available on function outputs that are used as standard on/off functions.
Features

Series 6
Compatible with Digitrax PX series Power Xtenders to keep locos and sound running in the presence of dirty/poor track work.*
FX3 outputs optimized for both LED and bulb applications.
FX3 outputs have configurable pulse available on all outputs.
Improved Scaleable Speed Stabilization (Back EMF).

Premium Series 6 Decoders have Scaleable Speed Stabilization (Back EMF) and usually have more than 2 available function leads.

Economy Series 6 Decoders do not have Scaleable Speed Stabilization (Back EMF) and usually have only 2 available function leads.

SoundFX Series 6 Features
Sound decoders available with either 8 bit standard or 16 bit premium sound.
Sound decoders configured for 8 Ohm speakers.
Allows for longer sound fragments.
Available in either standard 3 or premium 4 voice versions.
Auto CV configuration by sound projects
Scaleable Speed Stabilization (BEMF) optimized for sound operation.

*Some very small/specialized Series 6 decoders do not have connections for PX modules due to space constraints.
Current Rating-Functions

0.5 Amp for all functions
Original Release Date

2014
Current Rating

1.0 Amp/1.5 Amps Peak
Warranty



Digitrax gives a one year "No Worries"Warranty against manufacturing defects and accidental customer damage

on all Digitrax command stations, boosters, throttles, decoders, power supplies and layout control devices.
