Product Image Digitrax DH165A0 Decoder for HO Locomotives

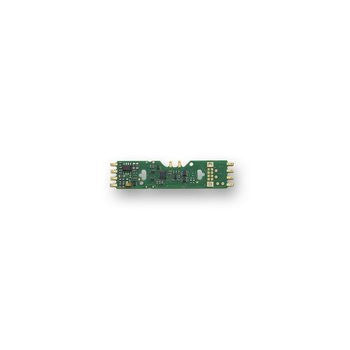

Digitrax DH165A0 Decoder for HO Locomotives

$32.00


Features:

DH165A0 fits Athearn Genesis, Kato, Stewart, Atlas & Other HO Locomotives.

Compatible with Sound Bug Sound Only Decoders

Decoder Lock equipped

Specifications

Current Rating-Motor 1.25 Amp (2.0 Amps Peak)
Size 2.877” x .667” x .173”(73.07mm x 16.93mm x4.4mm)
Installation Board Replacement
Function Outputs 6-500mA
Function Type

Digitrax Real FX3

  • Turn functions on and off.
  • Head lights and tail lights are automatically reversing unless you make them independent.
  • All function outputs have FX generators for prototypical lighting effects and have qualifiers for FX effects and qualifiers for standard on/off functions.
  • All Digitrax Series 3 decoders have FX3 type functions.
  • FX3 decoders offer full function mapping so you can choose which function (F0-F12) controls each function lead.
  • FX3 decoders offer master light switch capability.
  • FX3 decoders offer qualifiers for FX function operation qualified by one of the following:  the loco's direction of travel, whether F0 is on or off, loco direction and F0, or whether the loco is moving or not. These qualifiers are also available on function outputs that are used as standard on/off functions.
Features

Series 5

Sound Bug Compatible:  Series 5 Digitrax Decoders add the ability to add sound to regular mobile decoders with Sound Bug.  Some Series 5 decoders have sockets for simply plugging in the Sound Bug while others require soldering to wire the Sound Bug to the decoder.

For Use With

Sound Bug Sound Only Decoder

Warranty

Digitrax gives a one year "No Worries"Warranty against manufacturing defects and accidental customer damage

on all Digitrax command stations, boosters, throttles, decoders, power supplies and layout control devices.
